Hinge with Silent System

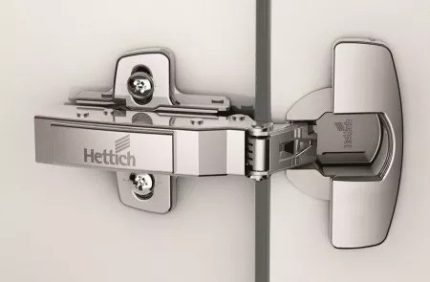

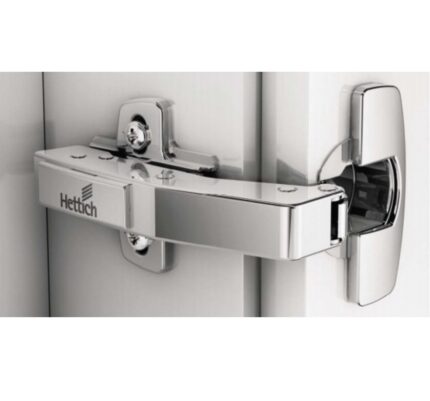

Veosys 105° Stainless Steel Hinge – Overlay
- Concealed hinge with clip on installation and integrated Silent System
- Quality classification under EN 15570, Level 2
- Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670
- For door thickness of 14 - 22 mm
- Cup diameter 35 mm
- Cup depth 11.5 mm
- Integrated overlay adjustment + 2.5 mm / - 2.5 mm
- Integrated depth adjustment + 2 mm / - 1.5 mm
- Height adjustment at mounting plate
- Stainless steel
