Quadro V6 YOU

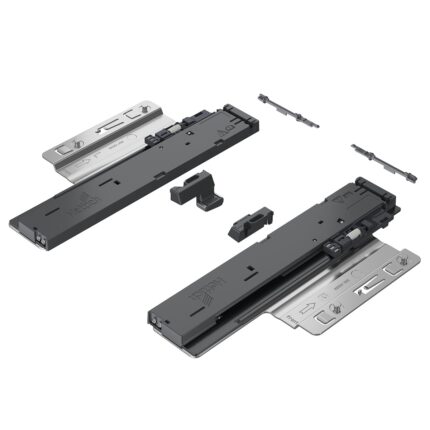

Push to open Silent opening system
- Can be used with AvanTech YOU system drawer on Quadro V6 YOU drawer runner with Silent System
- Can be used with wooden drawer on Quadro V6 5D drawer runner and Quadro V6 YOU drawer runner with Silent System
- Synchronisation bar to be ordered separately
- Connector for synchronisation bar to be ordered separately
- 1 Push to open Silent unit, left and right
- 1 activator, left and right
- 2 adapters for synchronisation

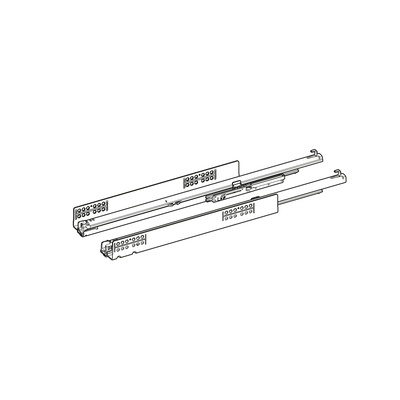

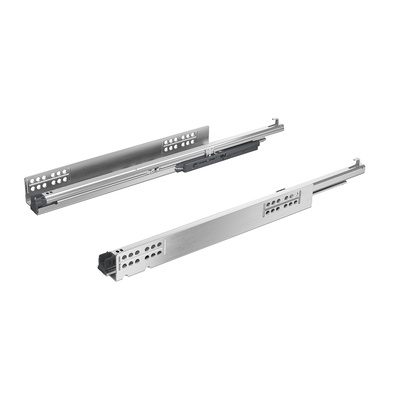

Quadro V6 YOU 30kg Silent System
- Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
- Integrated Silent System
- Tool-less height adjustment up to + 3 mm
- Optional: Push to open Silent opening system
- Optional: synchronisation / multi synchronisation for Push to open
- Optional: pull-out shelf support / pull-out shelf locating catch
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Suitable for drawers with a side profile thickness of up to 16 mm
- Load capacity to EN 15338, Level 3
- Galvanised steel
