Sensys 8631i 95° Thick Door Hinge - Inset - Blk S$8.30

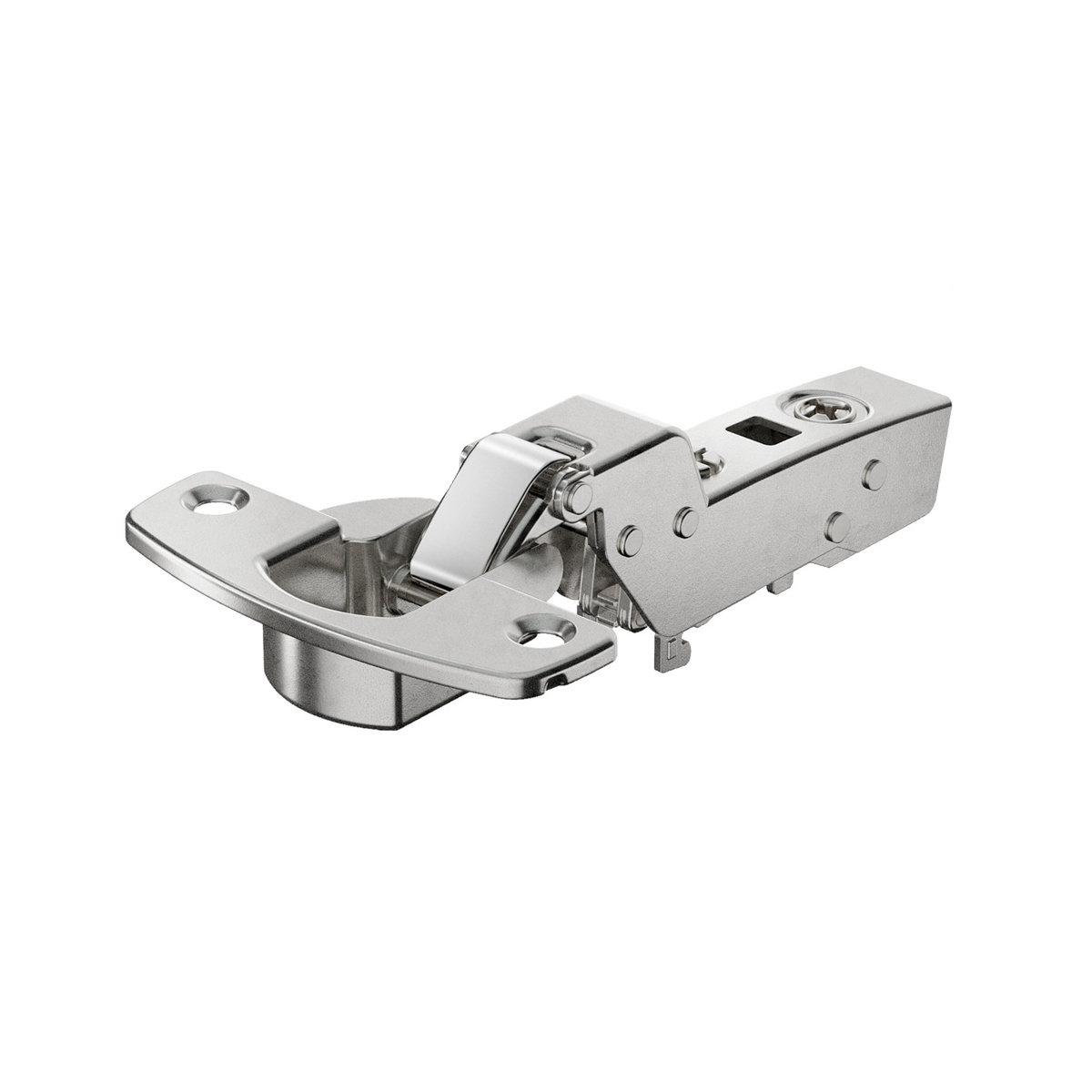

Sensys 8631i 95° Thick Door Hinge – Inset

SKU: 9090280

S$7.70

Colour: nickle plated

Opening angle: 95°

Application: inset

Add to favourite
SKU: 9090280 Categories: , ,
Description
  • Sensys thick door hinge, door thickness up to 32 mm
  • With integrated Silent System, with self closing feature (Sensys 8631i)
  • Quality classification under EN 15570, Level 2
  • Opening angle 95°
  • For door thickness 15-32 mm

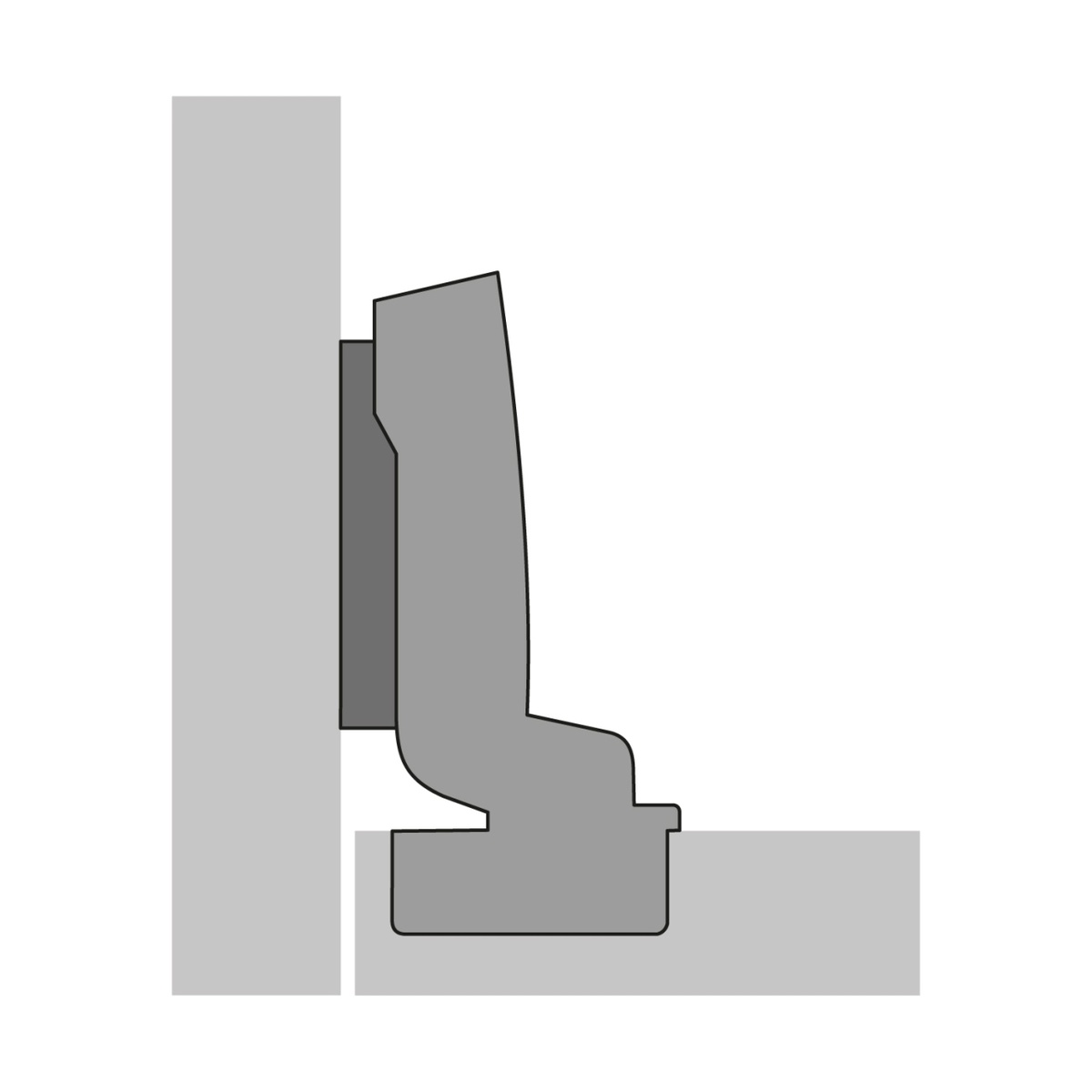

  • Door mounting option inset (B -4 mm)

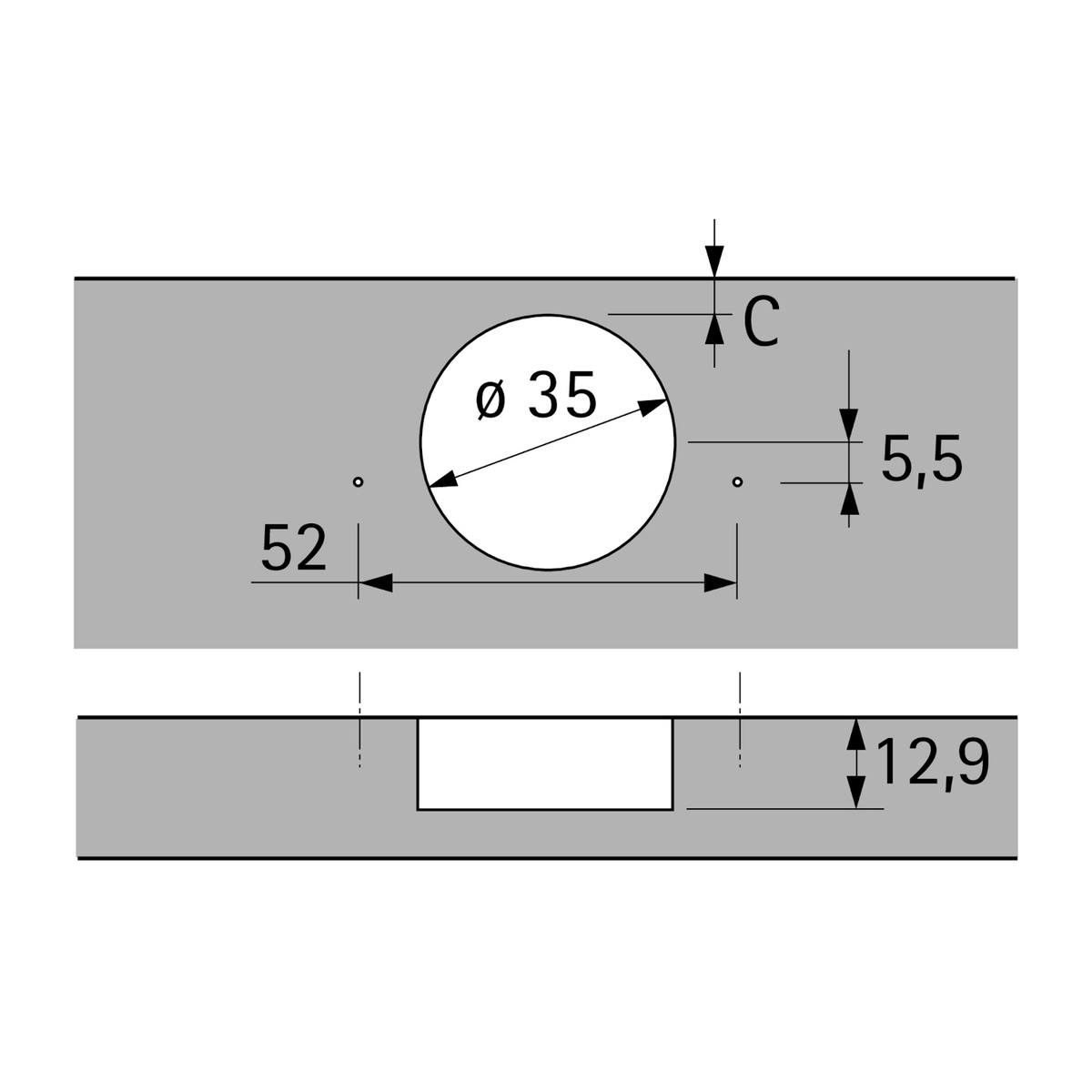

  • TH – drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm

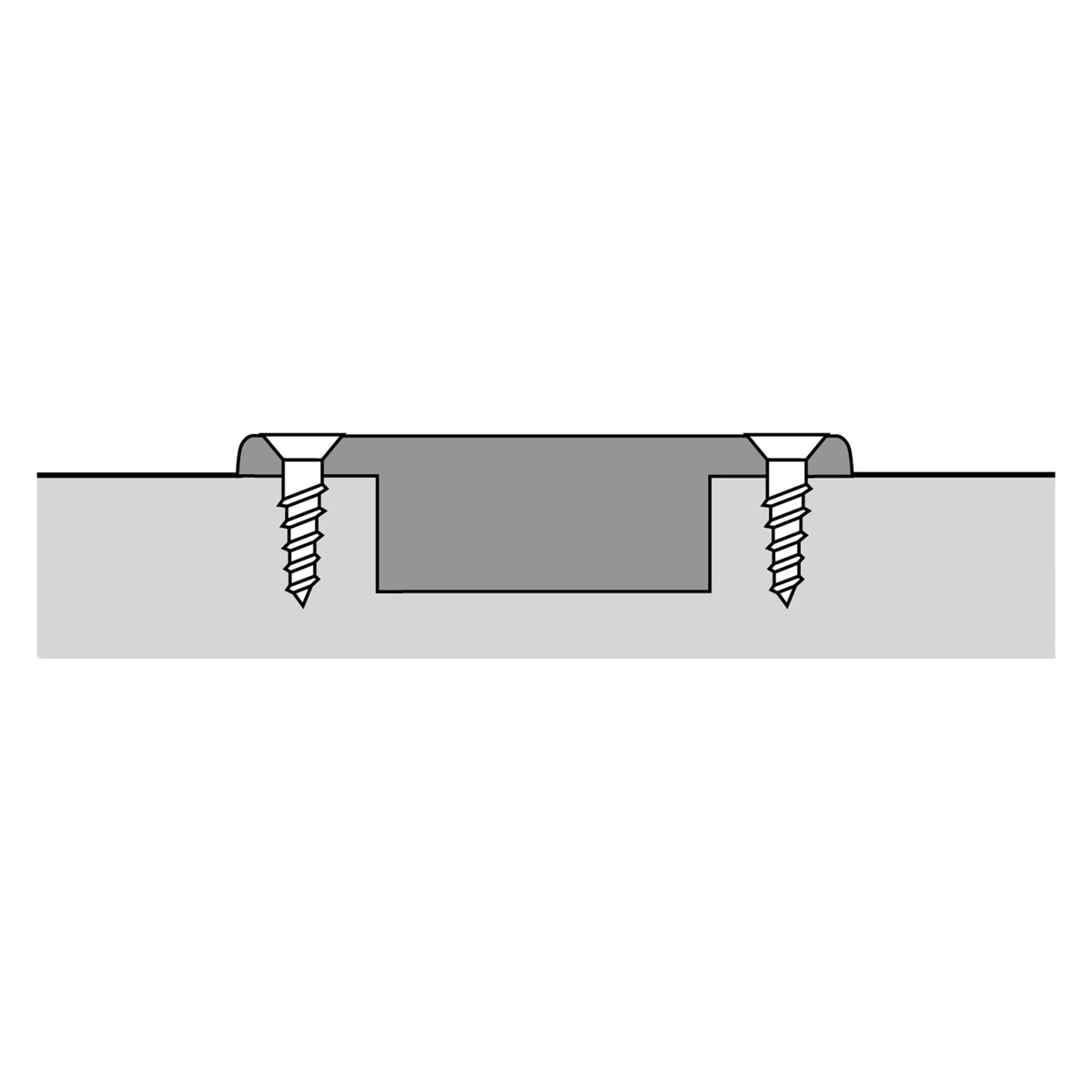

  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
