Sensys 8645i 110° Hinge – Overlay – Blk

SKU: 9091738

S$5.80



Colour: obsidian black

Opening angle: 110°

Application: full overlay



Add to favourite
SKU: 9091738 Categories: , ,
Description
  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110 °
  • For door thickness 15-24 mm

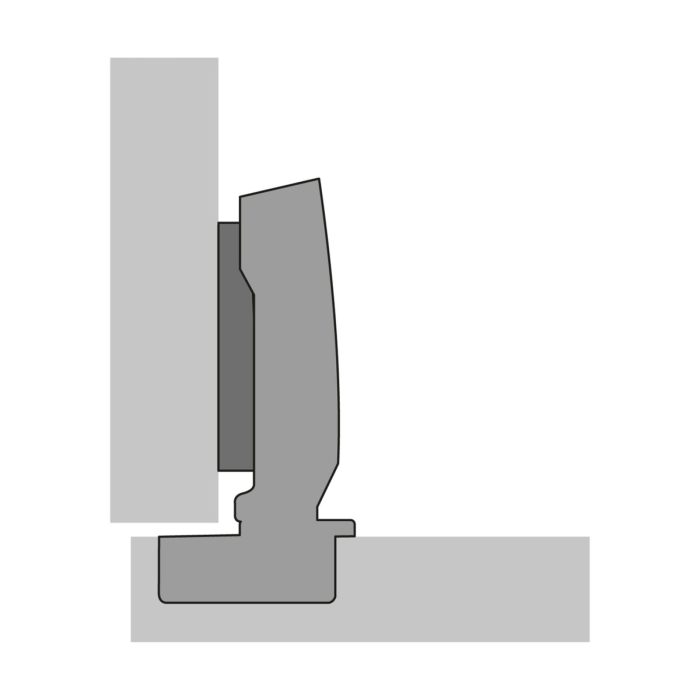

  • Door mounting option overlay (B 12.5 mm)

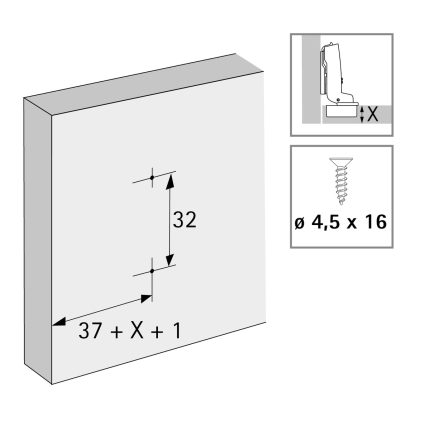

  • TH – drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm

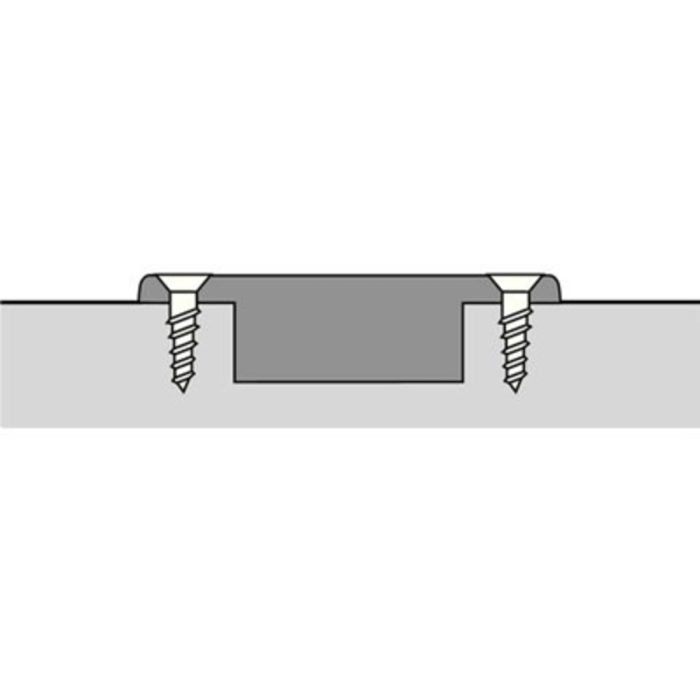

  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
