Sensys 8675 110°- Overlay - Blk S$4.60

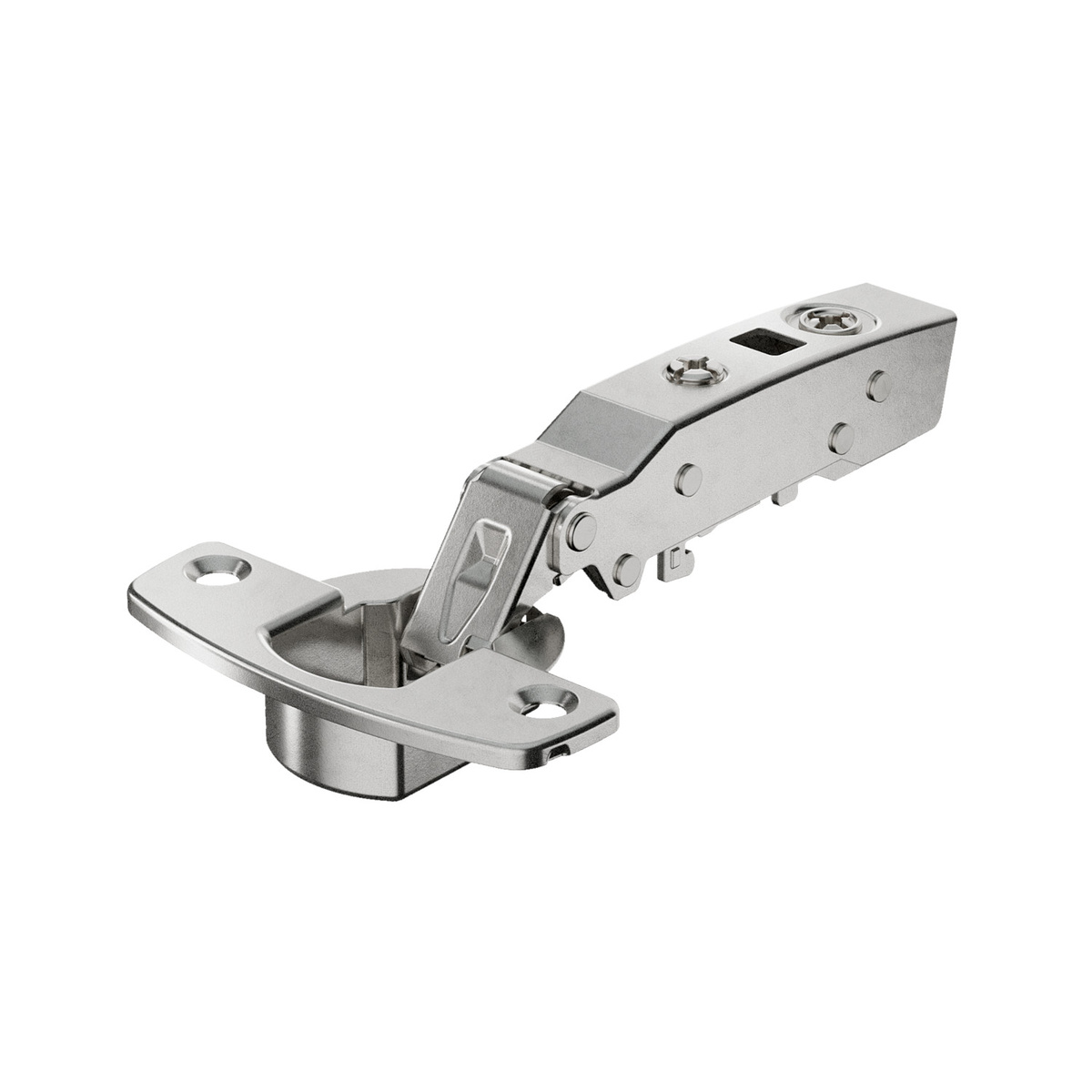

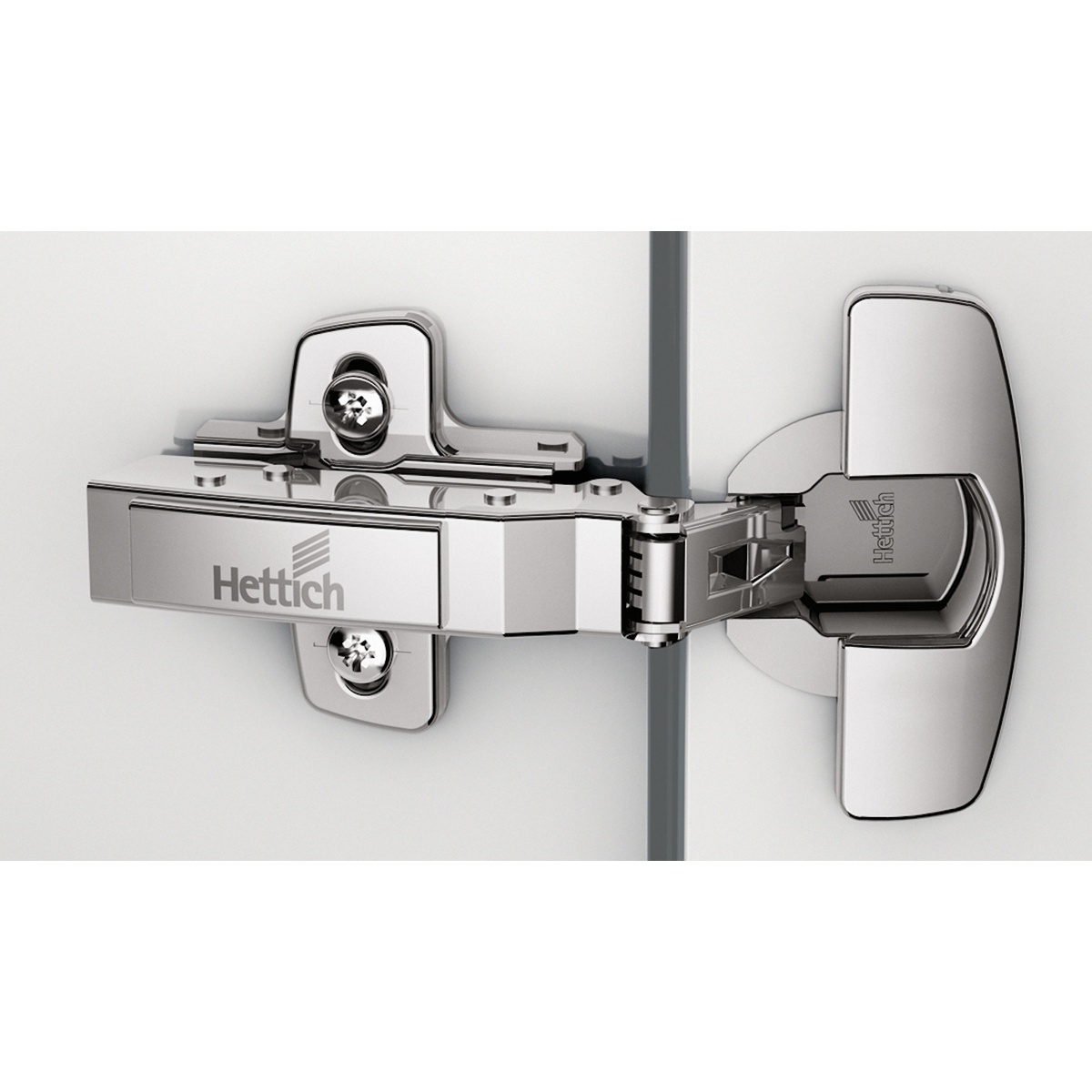

Sensys 8675 110° – Overlay

SKU: 9073662

S$4.02

Finish: Nickle Plated

Opening angle: 110 °



Add to favourite
SKU: 9073662 Categories: ,
Description
  • Without Silent System, without self-closing feature, for handleless applications (Sensys 8675)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110 °
  • For door thickness 15-24 mm

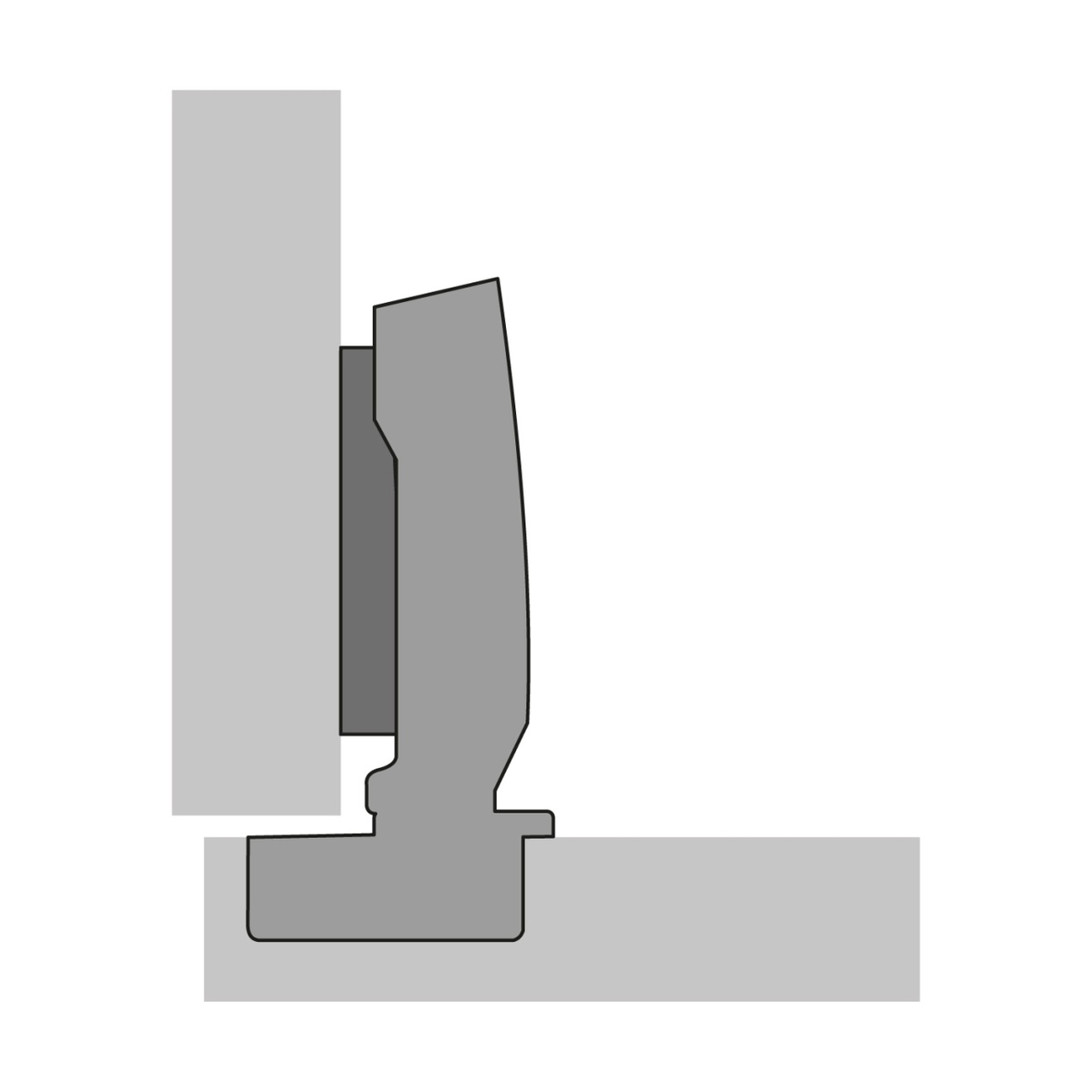

  • Door mounting option overlay (B 12.5 mm)

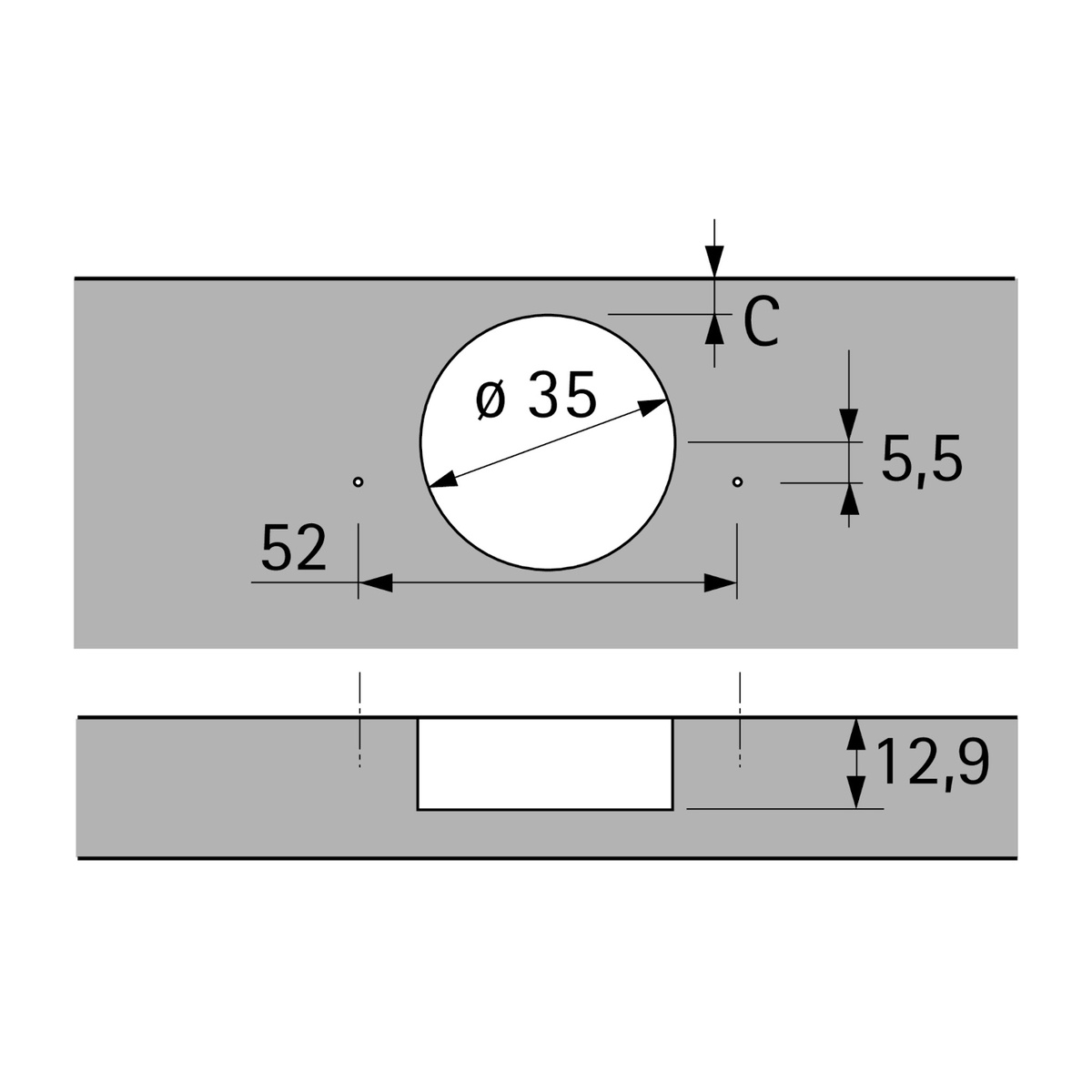

  • TH – drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm

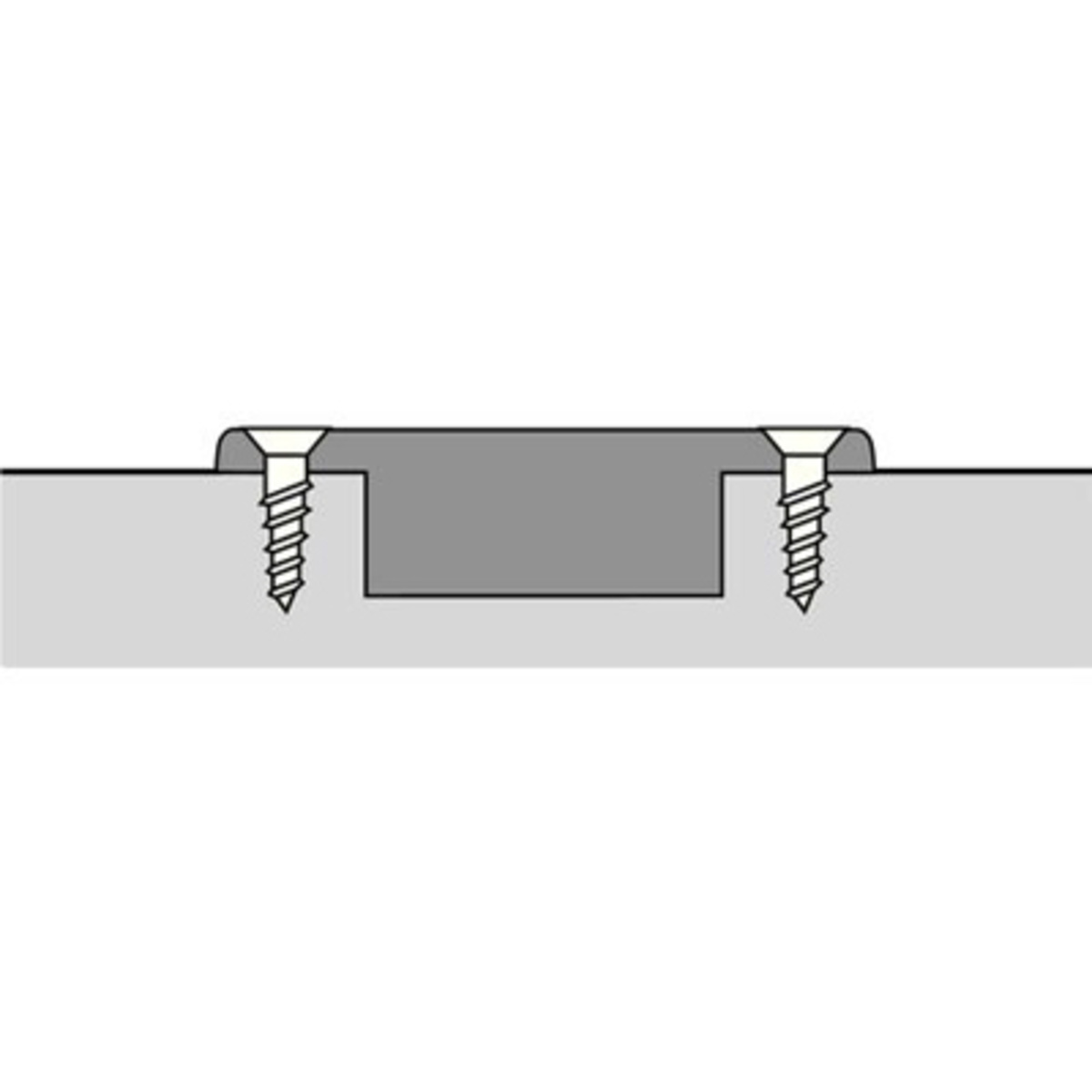

  • Installation for screwing on (TH 52)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
